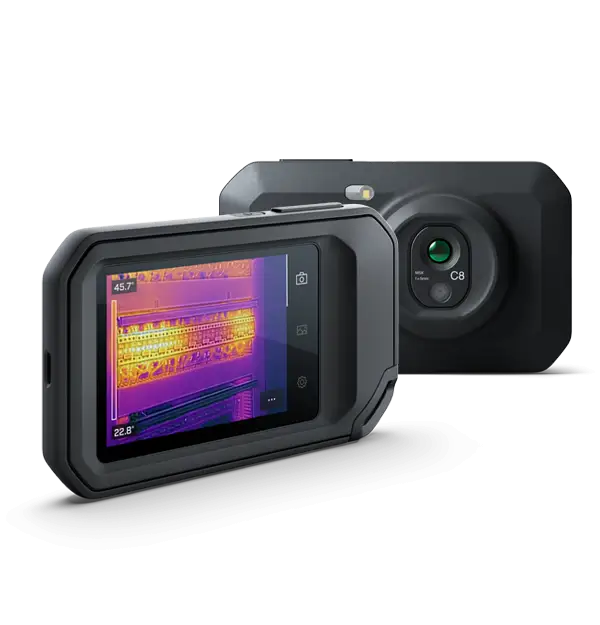

FLIR C8 – Compact Thermal Imaging Camera
FLIR C8 adalah kamera thermal compact profesional yang dirancang untuk membantu teknisi melakukan inspeksi lebih cepat, akurat, dan efisien. Kamera ini memiliki resolusi thermal tinggi 320 × 240 pixel serta teknologi FLIR MSX® yang menambahkan detail visual ke gambar thermal sehingga lebih mudah mengidentifikasi masalah pada peralatan industri maupun bangunan.
Dengan konektivitas cloud melalui FLIR Ignite™, gambar thermal dapat otomatis tersimpan dan dibagikan dengan tim secara cepat. Kamera ini sangat cocok digunakan untuk inspeksi listrik, mekanikal, HVAC, serta diagnostik bangunan.
Fitur Utama
- Resolusi thermal tinggi 320 × 240 pixels
- Thermal sensitivity <50 mK untuk mendeteksi perbedaan suhu kecil
- Teknologi FLIR MSX® untuk detail gambar lebih tajam
- Isotherm alarm untuk mendeteksi suhu melewati batas tertentu
- Hot & Cold Spot detection
- Temperature measurement hingga 450°C
- Wi-Fi cloud storage dengan FLIR Ignite
- Layar sentuh 3.5 inci dengan auto orientation
- Desain compact dan rugged untuk penggunaan industri
Spesifikasi Teknis FLIR C8
| Kategori | Spesifikasi |
|---|---|
| Thermal Resolution | 320 × 240 pixels |
| Thermal Sensitivity (NETD) | < 50 mK |
| Spectral Range | 7.5 – 13 µm |
| Detector Type | Uncooled microbolometer |
| Field of View (FOV) | 35° × 27° |
| Spatial Resolution (IFOV) | 2.0 mrad/pixel |
| Image Frequency | 9 Hz |
| Focus | Focus free |
| Minimum Focus Distance | 0.4 m |
| Digital Zoom | 1 – 4× continuous |
| Temperature Measurement Range | -20°C hingga 450°C |
| Accuracy |
0°C – 100°C : ±2°C 100°C – 450°C : ±2% |
| Measurement Tools | Spot, Box (max/min), Isotherm |
| Digital Camera | 5 MP |
| Image Modes |
Thermal image Visual image MSX image Picture-in-Picture |
| Color Palettes | Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC |
| Display | 3.5 inch touchscreen, 640 × 480 pixels |
| Storage | Built-in memory (>5000 images) |
| File Format | Standard JPEG with 14-bit measurement data |
| Connectivity | Wi-Fi, Bluetooth 5.0, USB-C |
| Video Streaming | Thermal / MSX / Visual via USB |
| Battery Type | Rechargeable Li-ion (built-in) |
| Battery Operating Time | ≈ 3 hours |
| Charging Time | ≈ 2 hours |
| Charging Interface | USB-C |
| Ingress Protection | IP54 |
| Drop Test | 2 m |
| Operating Temperature | -10°C hingga 50°C |
| Storage Temperature | -40°C hingga 70°C |
| Dimensions | 138 × 84 × 34 mm |
| Weight | 0.19 kg |
| Tripod Mount | 1/4″-20 UNC |
Aplikasi Penggunaan
- Inspeksi panel listrik
- Monitoring motor dan bearing
- HVAC inspection
- Building diagnostics dan insulation inspection
- Preventive maintenance pada mesin industri
Keunggulan FLIR C8
- Resolusi thermal tinggi untuk kelas compact camera
- Deteksi suhu hingga 450°C
- Transfer data otomatis ke cloud FLIR Ignite
- Desain portable dan mudah digunakan
- Sangat cocok untuk inspeksi industri dan bangunan
