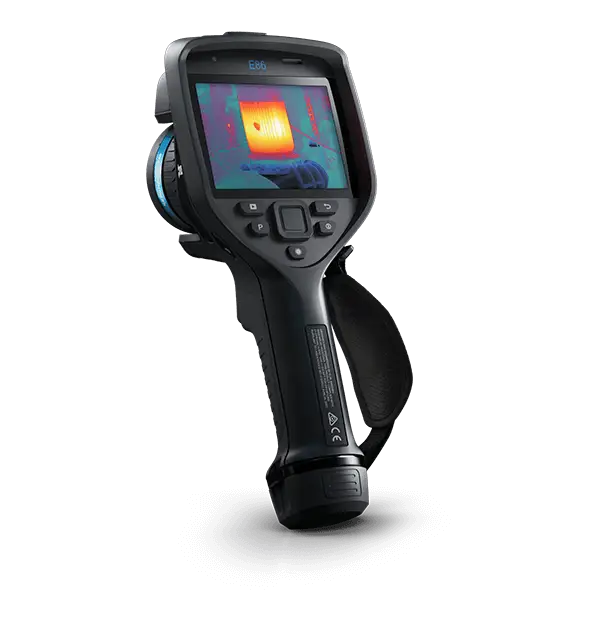

FLIR E86 Advanced Thermal Imaging Camera
FLIR E86 adalah kamera thermal profesional dari seri Exx yang dirancang
untuk aplikasi inspeksi industri, kelistrikan, mechanical inspection, serta
predictive maintenance. Kamera ini memiliki resolusi infrared 464 × 348 pixel
yang menghasilkan gambar thermal detail untuk membantu teknisi menemukan
anomali temperatur secara cepat dan akurat.
Dengan teknologi MSX® (Multi Spectral Dynamic Imaging) dan
UltraMax® image enhancement, FLIR E86 mampu memberikan detail visual
yang lebih jelas pada gambar thermal. Kamera ini juga dilengkapi dengan
laser distance meter autofocus untuk fokus yang cepat dan presisi
saat melakukan inspeksi di lapangan. :contentReference[oaicite:1]{index=1}
Fitur Utama
- IR Resolution 464 × 348 pixels untuk analisa thermal yang detail
- Thermal Sensitivity <30 mK untuk mendeteksi perbedaan suhu kecil
- MSX® Image Enhancement untuk menambahkan detail visual pada gambar thermal
- UltraMax® Image Processing untuk meningkatkan kualitas gambar
- Laser Distance Meter Autofocus untuk fokus otomatis yang akurat
- Inspection Route Mode untuk inspeksi rutin yang terstruktur
- Wi-Fi dan Bluetooth connectivity untuk transfer data
- FLIR Ignite Cloud compatibility untuk penyimpanan data
Highlighted Specifications
| Parameter | Specification |
|---|---|
| IR Resolution | 464 × 348 pixels |
| Thermal Sensitivity (NETD) | <30 mK (42° lens), <40 mK (24° lens), <50 mK (14° lens) |
| Accuracy | ±2°C atau ±2% dari pembacaan |
| Spectral Range | 7.5 – 14 µm |
| Frame Rate | 30 Hz |
| Temperature Range | -20°C hingga 120°C / 0°C hingga 650°C / 300°C hingga 1500°C |
| Digital Camera | 5 MP dengan LED lamp |
| Display | 4″ touchscreen LCD (640 × 480) |
| Storage | Removable SD card |
Imaging & Optical
| Detector Type | Uncooled Microbolometer, 17 µm |
| Digital Zoom | 1 – 4× continuous |
| Field of View (Lens Options) | 42°×32°, 24°×18°, 14°×10°, 80°×63° |
| Focus | Continuous LDM, One-shot LDM, contrast autofocus, manual focus |
| Minimum Focus Distance | 0.15 m (42° / 24° lens) |
| Color Palettes | Iron, Rainbow, Rainbow HC, White Hot, Black Hot, Arctic, Lava |
| Image Enhancement | MSX® dan UltraMax® |
Communication & Data Storage
| Interfaces | USB 2.0, Bluetooth®, Wi-Fi, DisplayPort |
| Image Format | Radiometric JPEG |
| Video Recording | Radiometric video (.csq) |
| Video Streaming | H.264 / MPEG-4 |
| Voice Annotation | Rekaman suara hingga 60 detik |
Power
| Battery Type | Rechargeable Li-ion battery |
| Battery Operating Time | >2.5 jam operasi |
Environmental
| Operating Temperature | −15°C hingga 50°C |
| Storage Temperature | −40°C hingga 70°C |
General Information
| Laser Pointer | Yes |
| Inspection Route | Supported |
| Software | FLIR Thermal Studio Starter |
