Flir i34

FLIR i34 Thermal Imaging Camera

FLIR i34 adalah kamera thermal imaging berbasis aplikasi yang dirancang untuk
mempermudah inspeksi industri dengan workflow yang terstandarisasi dan efisien.
Dengan resolusi thermal 240 × 320 pixels serta teknologi
MSX® image enhancement, kamera ini membantu teknisi mengidentifikasi
permasalahan listrik, mekanik, maupun bangunan secara cepat dan akurat.

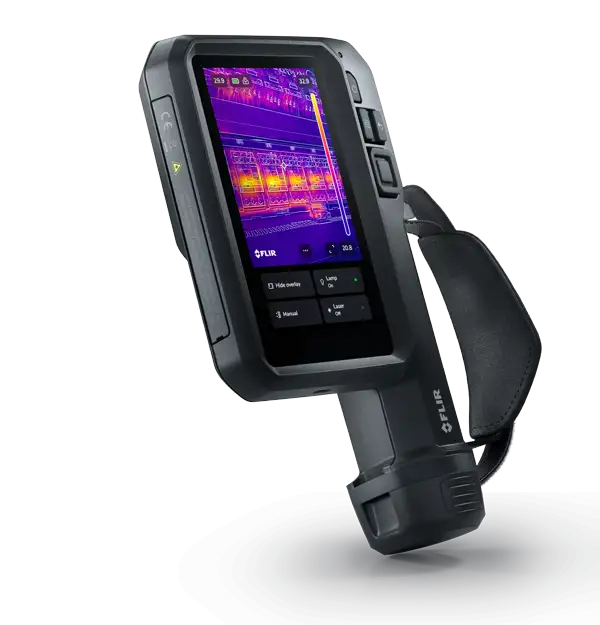

FLIR i34 Thermal Camera

Key Features

  • Resolusi infrared tinggi 240 × 320 pixels
  • Sensitivitas thermal <40 mK untuk mendeteksi perbedaan suhu kecil
  • Teknologi MSX® (Multi Spectral Dynamic Imaging)
  • Kamera digital 8 MP autofocus
  • Layar sentuh 5 inci (720 × 1280)
  • Mode gambar: Thermal, MSX®, Picture-in-Picture, Digital Camera
  • Wi-Fi dan USB-C untuk transfer data
  • Koneksi cloud melalui FLIR Ignite dan Assetlink
  • Desain rugged dengan rating IP54
  • Battery hingga 4 jam penggunaan

Typical Applications

  • Electrical inspection
  • Mechanical equipment inspection
  • Predictive maintenance program
  • HVAC inspection
  • Building diagnostics
  • Energy loss detection

Highlighted Specifications

Parameter Specification
IR Resolution 240 × 320 pixels
Thermal Sensitivity (NETD) < 40 mK @ 30°C
Accuracy ±2°C or ±2%
Field of View 38° × 49°
Spectral Range 7.5 – 13 µm
Image Frequency 30 Hz
Minimum Focus Distance 0.5 m
Spatial Resolution (IFOV) 2.9 mrad

Imaging & Optical

Feature Details
Digital Camera 8 MP, Autofocus
Display 5″ Color LCD, 720 × 1280
Focus Fixed focus
Color Palettes Iron, White Hot, Black Hot, Rainbow, Arctic, Lava, Rainbow HC
Image Modes MSX®, Thermal, Picture-in-Picture, Digital Camera

Measurement & Analysis

Feature Details
Temperature Range -20°C to 200°C / 10°C to 450°C
Spot Meter Center spot, box with min/max
Isotherm Above / Below
Emissivity 0.1 – 1.0 adjustable

Connectivity & Storage

  • USB-C data transfer
  • Wi-Fi IEEE 802.11 a/ac/b/g/n
  • Internal memory storage
  • FLIR Ignite Cloud Integration
  • FLIR Assetlink compatibility

Power

  • Rechargeable Lithium-ion battery
  • Battery operating time: approx. 4 hours
  • Charging time: 2 hours (charger)
  • Automatic power shutdown

Environmental Specifications

Parameter Value
Operating Temperature -15°C to 50°C
Storage Temperature -40°C to 70°C
Protection Rating IP54
Drop Test 2 m
Weight 0.8 kg
Dimensions 225 × 136 × 73 mm

Package Includes

  • FLIR i34 Infrared Camera
  • Rechargeable Battery
  • Extra Battery
  • Battery Charger
  • USB-C Cable
  • Hard Transport Case
  • Wrist Strap
  • Documentation
