Flir T1020

FLIR T1020 HD Thermal Imaging Camera

FLIR T1020 adalah kamera thermal imaging kelas premium dari FLIR T-Series yang dirancang
untuk aplikasi inspeksi industri, kelistrikan, energi, dan penelitian. Kamera ini dilengkapi
dengan resolusi thermal 1024 × 768 pixels (hingga 3.1 MP dengan UltraMax)
serta sensitivitas thermal <20 mK yang memungkinkan pengguna mendeteksi perbedaan
suhu yang sangat kecil dengan akurasi tinggi.

Dilengkapi sistem optik FLIR OSX™ Precision HDIR, autofocus kontinu, serta
blok optik yang dapat diputar hingga 120°, kamera ini memberikan fleksibilitas
maksimal saat melakukan inspeksi di area yang sulit dijangkau. :contentReference[oaicite:2]{index=2}

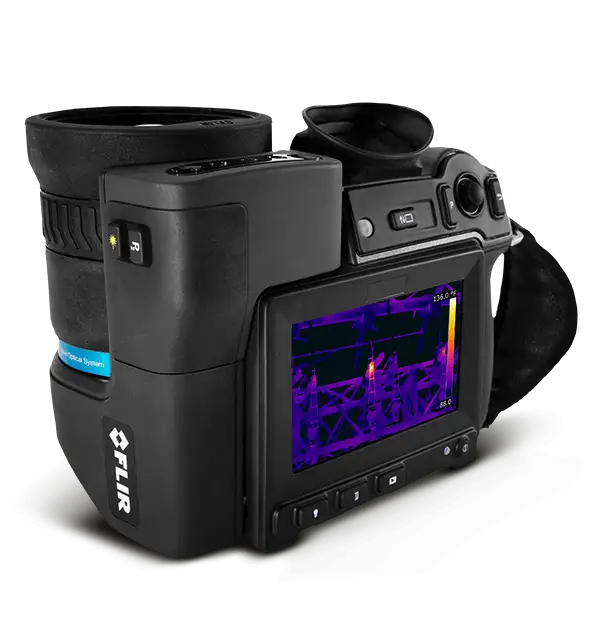

FLIR T1020 Thermal Camera

Key Features

  • Resolusi thermal tinggi 1024 × 768 pixels
  • UltraMax image enhancement hingga 3.1 MP
  • Sensitivitas thermal <20 mK
  • Frame rate 30 Hz
  • Continuous autofocus dengan sistem optik HDIR
  • Rotating optical block 120°
  • MSX® (Multi-Spectral Dynamic Imaging)
  • Kamera digital 5 MP dengan LED light
  • Layar sentuh 4.3” LCD
  • Viewfinder resolusi tinggi
  • Wi-Fi, Bluetooth, USB dan HDMI connectivity

Typical Applications

  • Electrical inspection (switchgear, transformer, panel)
  • Predictive maintenance program
  • Mechanical equipment monitoring
  • High temperature industrial inspection
  • Power generation inspection
  • Research & development thermal analysis

Highlighted Specifications

Parameter Specification
IR Resolution 1024 × 768 pixels (UltraMax up to 3.1 MP)
Thermal Sensitivity (NETD) <20 mK @ 30°C
Spectral Range 7.5 – 14 µm
Image Frequency 30 Hz
Detector Type Uncooled microbolometer FPA
Detector Pitch 17 µm

Imaging & Optical

Feature Details
Digital Camera 5 MP with LED light
Display 4.3” Touchscreen LCD, 800 × 480
Digital Zoom 1–8× continuous
Image Modes Thermal, MSX®, Picture-in-Picture, Digital Camera
Color Palettes Iron, Rainbow, Rainbow HC, White Hot, Black Hot, Arctic, Lava
Optional Lenses 7°, 12°, 28°, 45° lenses

Measurement & Analysis

Feature Details
Temperature Range Up to 2000°C (depending on model)
Measurement Tools Spot meter, area measurement, isotherm
Image Enhancement UltraMax super resolution
MSX Technology Thermal image enhanced with visual detail

Communication & Data Storage

  • Wi-Fi connectivity
  • Bluetooth communication
  • USB data transfer
  • HDMI video output
  • SD / SDHC removable memory card
  • Radiometric JPEG image storage

Power

  • Rechargeable Li-ion battery
  • Battery operating time: >2.5 hours
  • Charging time: approx. 2.5 hours
  • AC adapter or vehicle power supply

General Specifications

Parameter Value
Camera Dimensions 167 × 204 × 188 mm
Display Orientation Automatic landscape / portrait
Video Recording Radiometric & non-radiometric recording

Package Includes

  • FLIR T1020 Thermal Camera
  • Rechargeable Battery
  • Battery Charger
  • SD Memory Card
  • USB Cable
  • Power Supply
  • Hard Transport Case
  • User Documentation
