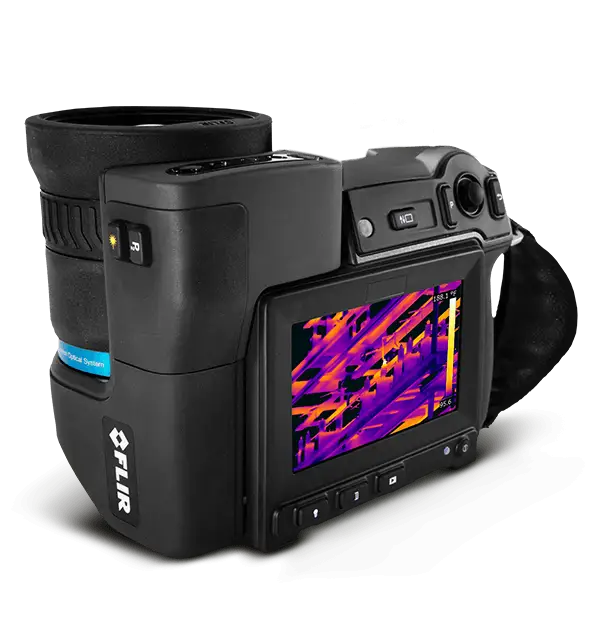

FLIR T1010 HD Thermal Imaging Camera
FLIR T1010 adalah kamera thermal kelas premium yang menawarkan
resolusi infrared HD 1024 × 768 pixel untuk analisa temperatur yang sangat detail.
Dengan teknologi UltraMax®, resolusi gambar dapat ditingkatkan hingga
3.1 megapixel sehingga memudahkan teknisi menemukan anomali temperatur
pada sistem listrik, mekanikal, dan proses industri.
Kamera ini dilengkapi dengan fitur profesional seperti
Inspection Route Mode, Multi Spectral Dynamic Imaging (MSX®),
dan 120° rotating optical block sehingga inspeksi dapat dilakukan
dengan lebih nyaman bahkan pada area yang sulit dijangkau. :contentReference[oaicite:1]{index=1}
Fitur Utama
- HD Thermal Resolution 1024 × 768 pixel
- UltraMax® Technology hingga 3.1 MP untuk detail gambar lebih tinggi
- Thermal Sensitivity <25 mK untuk mendeteksi perbedaan suhu sangat kecil
- MSX® Image Enhancement untuk menambahkan detail visual pada gambar thermal
- Inspection Route Mode untuk inspeksi rutin yang terstruktur
- 120° Rotating Optical Block untuk fleksibilitas pengukuran
- Programmable buttons untuk akses cepat ke fungsi penting
- Touchscreen interface profesional
Highlighted Specifications
| Parameter | Specification |
|---|---|
| IR Resolution | 1024 × 768 pixels (up to 3.1 MP with UltraMax) |
| Thermal Sensitivity (NETD) | <25 mK @ 30°C |
| Spectral Range | 7.5 – 14 µm |
| Frame Rate | 30 Hz |
| Temperature Range | hingga 650°C |
| Field of View (Lens options) | 12° × 9°, 28° × 21°, 45° × 34° |
| Digital Camera | 5 MP dengan LED lamp |
| Display | 4.3 inch touchscreen LCD (800 × 480) |
| Storage | Removable SD / SDHC card |
Imaging & Optical
| Detector Type | Uncooled microbolometer (FPA) |
| Detector Pitch | 17 µm |
| Digital Zoom | 1 – 8× continuous |
| Focus | One-shot autofocus atau manual focus |
| Minimum Focus Distance | 1.3 m |
| Color Palettes | Iron, Rainbow, Rainbow HC, White Hot, Black Hot, Arctic, Lava |
| Image Modes | Thermal, Thermal MSX, Digital Camera |
Communication & Data Storage
| Image Format | Radiometric JPEG |
| Video Recording | H.264 to memory card |
| Video Streaming | H.264 via USB |
| Software Update | Via USB cable atau SD card |
Environmental
| Operating Temperature | −15°C sampai 50°C |
| Humidity | 0 – 95% RH |
General Information
| Dimensions | 167.2 × 204.5 × 180.4 mm |
| Storage Media | SD / SDHC card |
| User Interface | Touchscreen capacitive |
Informasi Produk & Penawaran Harga
Hubungi kami untuk konsultasi aplikasi thermal camera,
demo produk, atau permintaan penawaran harga.
