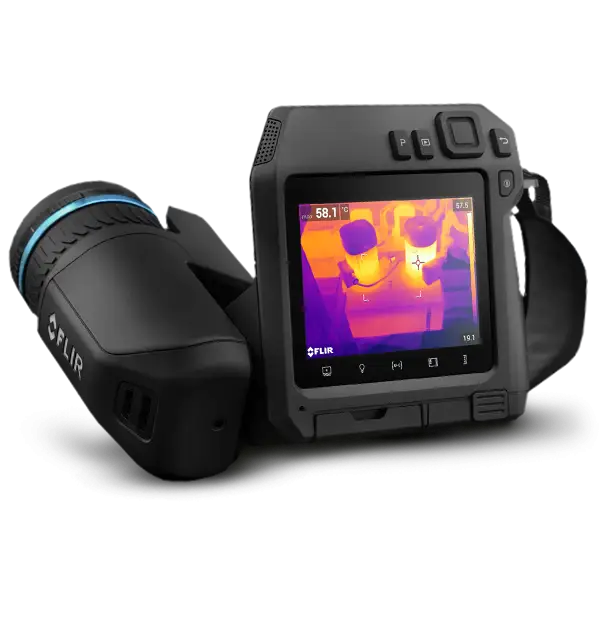

FLIR T530 Professional Thermal Camera
FLIR T530 adalah kamera thermal profesional yang dirancang untuk membantu teknisi
dan engineer menemukan potensi masalah pada sistem listrik, mekanikal, dan proses industri
dengan cepat dan akurat. Kamera ini dilengkapi dengan resolusi infrared 320 × 240 pixel,
fitur laser-assisted autofocus, serta optical block yang dapat berputar 180°
sehingga memungkinkan inspeksi pada area yang sulit dijangkau dengan lebih nyaman.
Dengan tampilan layar sentuh 4 inci dan antarmuka yang intuitif, pengguna dapat melakukan analisis
termal secara cepat serta mengelola inspeksi menggunakan fitur Inspection Route Mode
yang terintegrasi dengan software FLIR Thermal Studio. :contentReference[oaicite:1]{index=1}
Fitur Utama
- IR Resolution 320 × 240 pixels untuk analisa thermal yang jelas
- Thermal Sensitivity <30 mK untuk mendeteksi perbedaan temperatur kecil
- Laser Assisted Autofocus untuk fokus otomatis yang akurat
- Optical block 180° rotating memudahkan inspeksi di area sempit
- Inspection Route Mode untuk inspeksi rutin yang lebih efisien
- UltraMax Technology meningkatkan kualitas detail gambar thermal
- MSX Image Enhancement untuk menambahkan detail visual pada gambar thermal
- Wi-Fi dan Bluetooth connectivity
Highlighted Specifications
| Parameter | Specification |
|---|---|
| IR Resolution | 320 × 240 pixels (76,800 pixels) |
| Thermal Sensitivity (NETD) | <30 mK @ 30°C (tergantung lensa) |
| Accuracy | ±2°C atau ±2% dari pembacaan |
| Spectral Range | 7.5 – 14 µm |
| Frame Rate | 30 Hz |
| Field of View (FOV) | 42°×32°, 24°×18°, 14°×10°, 80°×63° |
| Digital Camera | 5 MP dengan LED lamp |
| Display | 4 inch touchscreen LCD (640 × 480) |
| Storage Media | Removable SD Card |
Imaging & Optical
| Detector Type | Uncooled Microbolometer, 17 µm |
| Digital Zoom | 1 – 4x continuous |
| Focus | Laser assisted autofocus, manual focus |
| Minimum Focus Distance | 0.15 m (tergantung lensa) |
| Color Palettes | Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC |
| Image Enhancement | MSX® dan UltraMax® |
Communication & Data Storage
| Interfaces | USB, Wi-Fi, Bluetooth |
| Image Format | Radiometric JPEG |
| Video Recording | Radiometric video (.csq) |
| Video Streaming | H.264 / MPEG-4 over Wi-Fi |
Power
| Battery Type | Rechargeable Li-ion battery |
| Battery Operating Time | ±4 jam operasi |
Environmental
| Operating Temperature | −15°C sampai 50°C |
| Storage Temperature | −40°C sampai 70°C |
| Humidity | 0 – 95% RH |
General Information
| Weight | ±1.4 kg |
| Dimensions | 201 × 167 × 140 mm |
| Tripod Mount | UNC 1/4″-20 |
