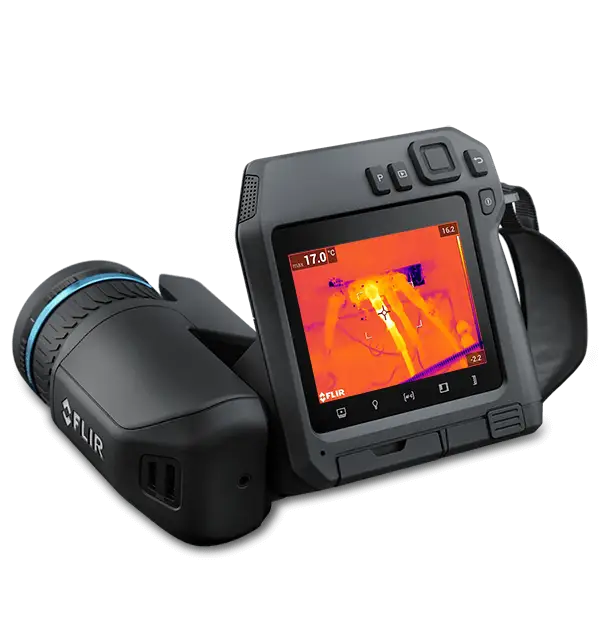

FLIR T540 Professional Thermal Camera
FLIR T540 adalah kamera thermal profesional yang dirancang untuk inspeksi industri, kelistrikan,
mekanikal, serta penelitian dan pengembangan. Dengan resolusi infrared 464 × 348 pixel dan
fitur canggih seperti laser-assisted autofocus, Inspection Route Mode, dan
rotating optical block 180°, kamera ini membantu teknisi menemukan anomali temperatur
dengan cepat dan akurat tanpa kontak langsung.
Kamera ini sangat ideal untuk:
- Predictive Maintenance
- Inspeksi Panel Listrik
- Analisa Mesin Industri
- Penelitian dan Pengembangan (R&D)
- Inspeksi Sistem Mekanikal
Fitur Utama
- IR Resolution 464 × 348 pixel untuk analisa thermal yang detail
- Laser Assisted Autofocus memastikan fokus cepat dan akurat
- Optical block dapat berputar 180° untuk inspeksi dari berbagai sudut
- Inspection Route Mode untuk inspeksi rutin yang terstruktur
- Macro Mode untuk analisa objek kecil tanpa mengganti lensa
- Touchscreen 4 inch dengan auto rotation
- Wi-Fi & Bluetooth untuk transfer data dan koneksi perangkat
- FLIR Ignite Cloud untuk penyimpanan dan sharing data
Highlighted Specifications
| Parameter | Specification |
|---|---|
| IR Resolution | 464 × 348 pixels |
| Thermal Sensitivity (NETD) | <30 mK @ 30°C |
| Accuracy | ±2°C atau ±2% dari pembacaan |
| Spectral Range | 7.5 – 14 µm |
| Frame Rate | 30 Hz |
| Field of View | 42°×32°, 24°×18°, 14°×10°, 80°×63° |
| Digital Camera | 5 MP dengan LED lamp |
| Display | 4 inch touchscreen LCD (640×480) |
| Storage | Removable SD Card |
Imaging & Optical
| Detector Type | Uncooled Microbolometer |
| Digital Zoom | 1 – 6x Continuous |
| Focus | Laser assisted autofocus, manual focus |
| Minimum Focus Distance | 0.15 m |
| Color Palettes | Iron, Gray, Rainbow, Arctic, Lava |
Communication & Data Storage
| Interfaces | USB 2.0, Wi-Fi, Bluetooth |
| Image Format | JPEG dengan data pengukuran |
| Video Streaming | H.264 / MPEG-4 |
Power
| Battery Type | Li-ion rechargeable battery |
| Battery Operating Time | ±4 hours |
Environmental
| Operating Temperature | −15°C sampai 50°C |
| Storage Temperature | −40°C sampai 70°C |
| Humidity | 95% RH |
General Information
| Weight | 1.4 kg (battery included) |
| Dimensions | 140 × 201 × 167 mm |
| Tripod Mount | UNC 1/4″-20 |
